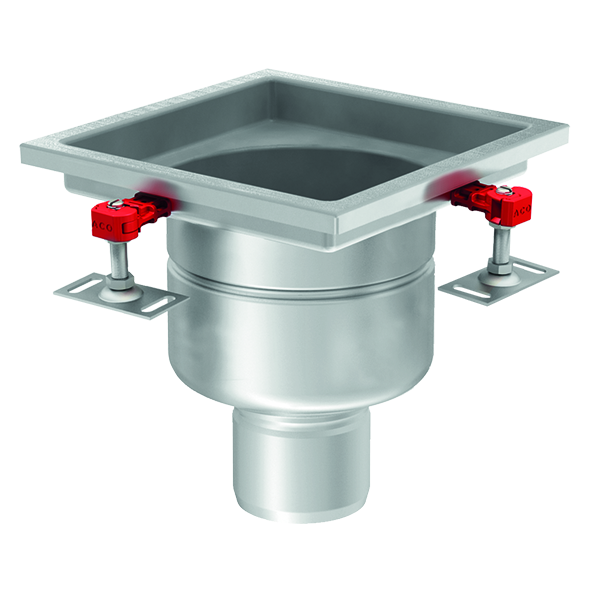

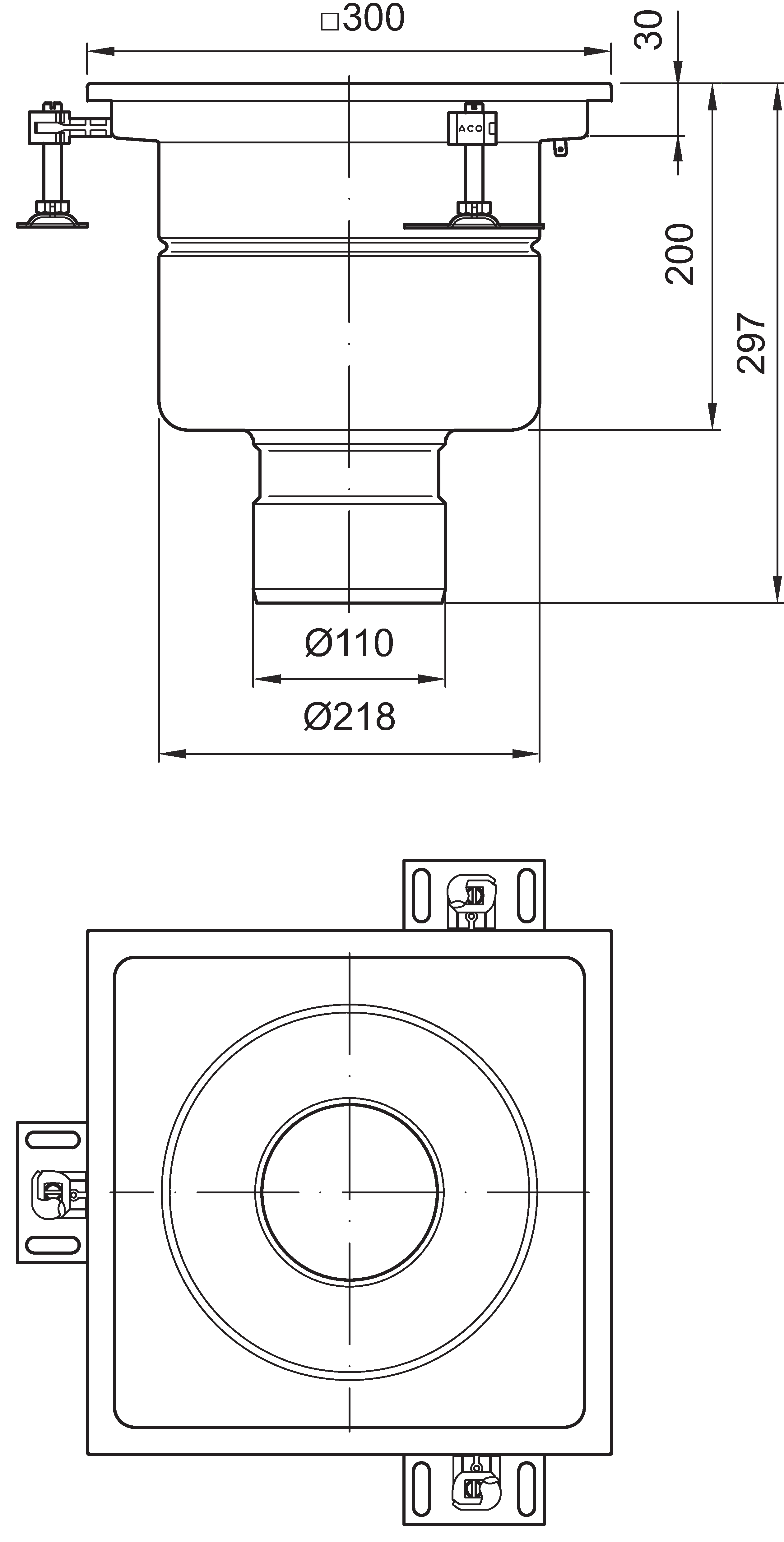

Aco ia218v ø110 300mm aisi304

Eldhúsniðurfall DN110 300mm ACO

Eiginleikar

• Fully inspectable and cleanable
• Fully removable and easily cleanable stainless steel foul air trap (FAT)
• Full drainability
• Internal radii equal or larger than 3 mm
• Fully welded hygienic joints
• Steel thickness min. 1,5 mm
• Edge infill
• ACO protective cover available
• Fully pickled and passivated
• BIM models are available in ACO Building Drainage BIM Revit libraries
• Certified according to EN 1253-1
• Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
• Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
• Adjustable EasyFix leveling feet
• Wide range of gratings for various load classes including slip resistant solutions
• Certified fire protective solution available for classes EI 90 – EI 180 (EN 13 501-2)
• Silt basket available as accessory
