Sprinkler stútur stand Upp 141°
Stærð: 3/4"
Litur: Kopar
K115

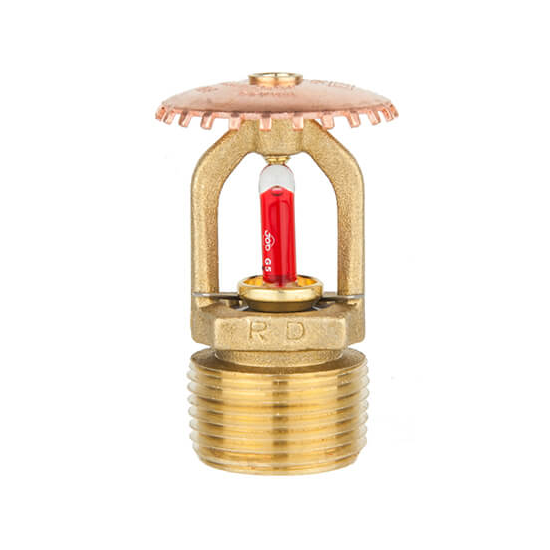

Rapidrop RD044 fire sprinklers are upright (SSU), standard response, frangible glass bulb automatic sprinklers.
They are CE Marked, LPCB, VdS, FM approved, UL listed, standard orifice fire sprinklers for installation in fire sprinkler systems.
SSU Sprinklers produce a hemispherical water distribution pattern below the deflector. In the instance of fire, the heat causes the fluid in the glass bulb to expand which shatters the glass and releases the spring seal assembly. Water flows from the orifice onto the sprinkler deflector which diffuses the water into a uniform spray pattern which extinguishes or controls the fire.
09.11.23_ULc Certificate.pdf
09.11.23_Data Sheet 4.51 D [EN].pdf
09.11.23_UL Certificate.pdf
09.11.23_VdS Certificate.pdf
09.11.23_FM Certificate.pdf
09.11.23_LPCB Certificate.pdf
09.11.23_CE Certificate.pdf
09.11.23_UKCA Certificate.pdf
