Vörulýsing
Innbyggður kassi fyrir þvagskál.

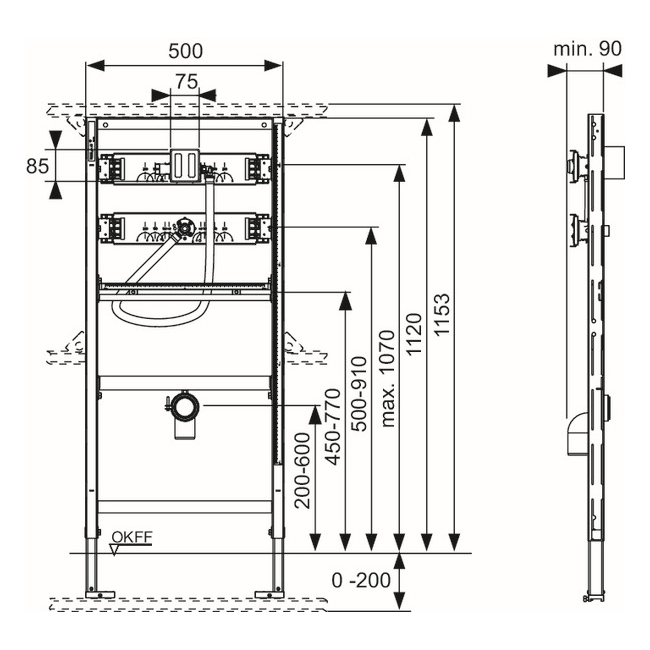

Stærð: 112x50x9cm.
Hæð er stillanleg.
Kassinn kemur hljóðeinangraður til að minnka vatnshljóð.
Kassinn kemur samsettur og er auðveldur í uppsetningu.

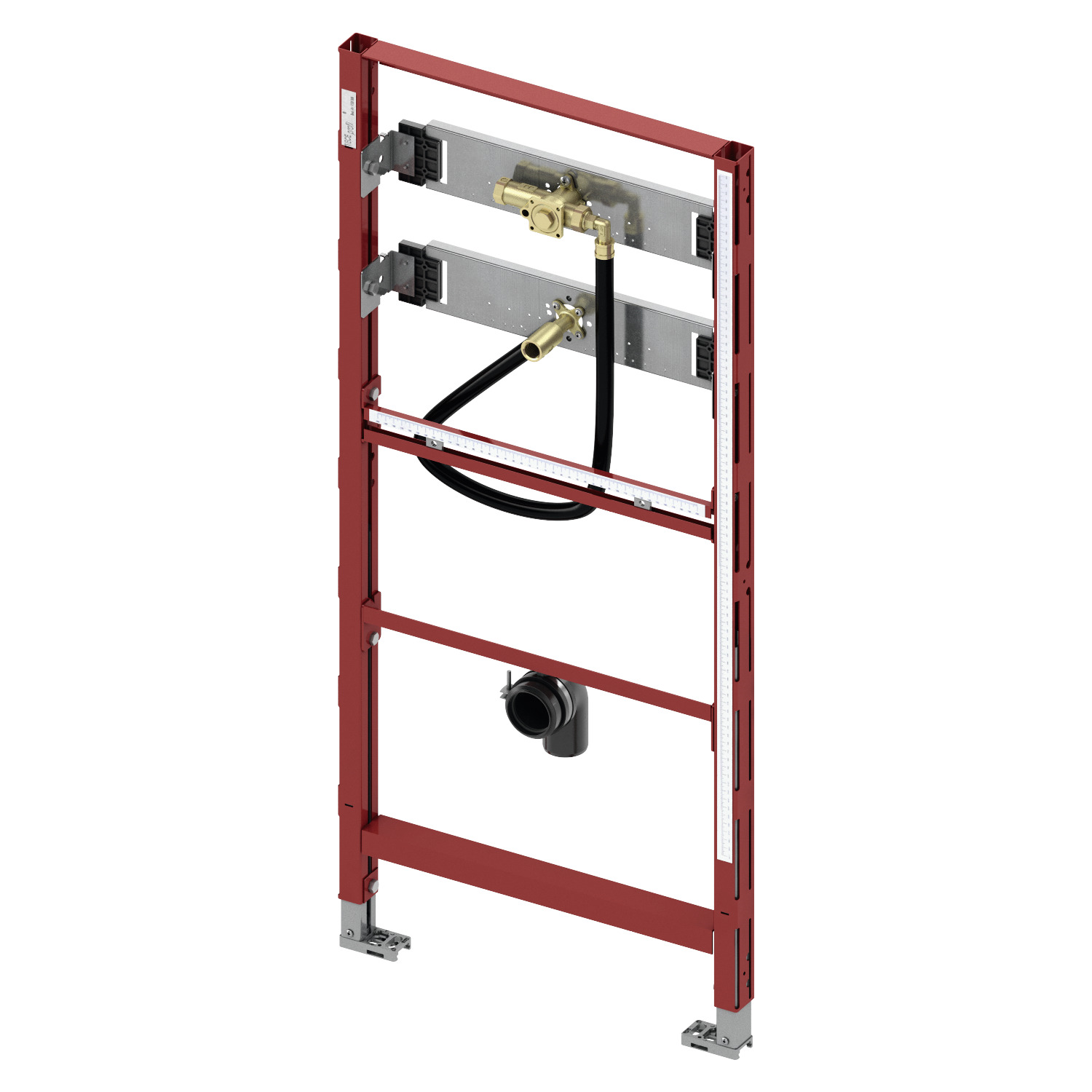

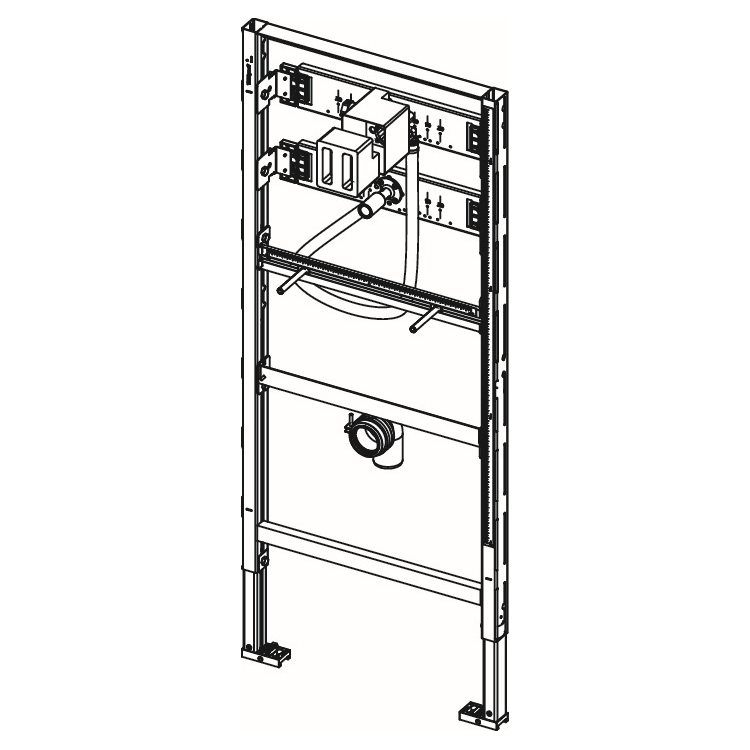

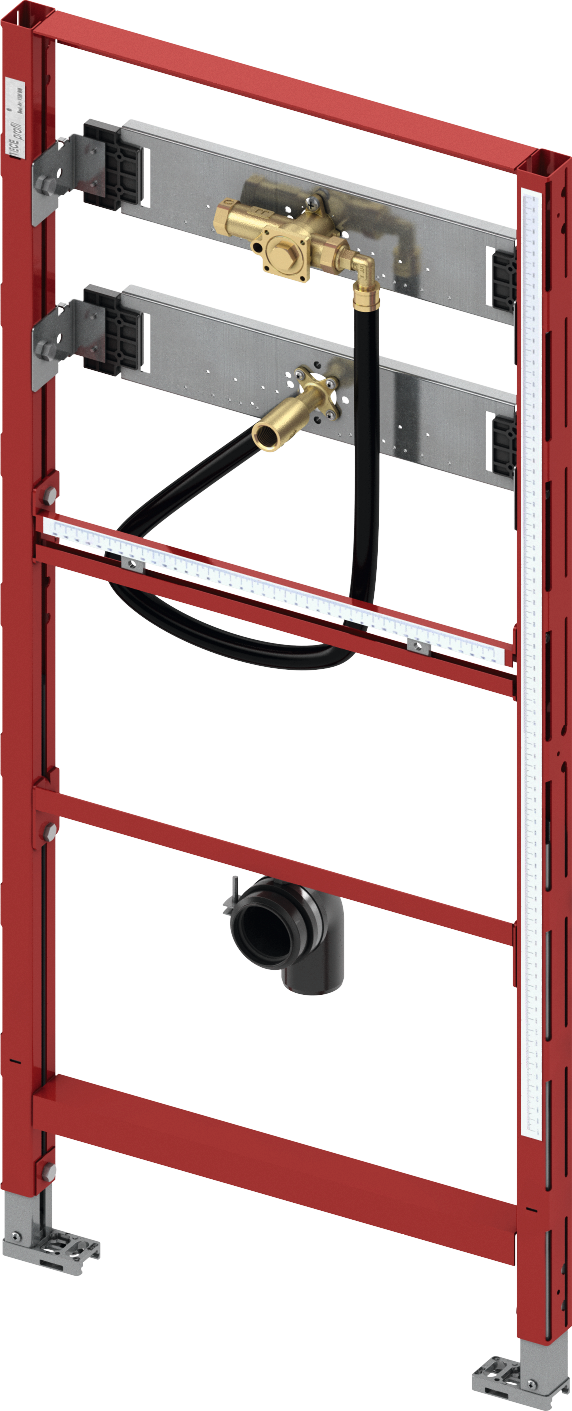

TECEprofil urinal module with TECE flush valve housing U 1, installation height 1120 mm.
Urinal module to hold manual and electronic actuation systems. For fitting to TECEprofil section tubes or for installation in metal or wooden stud walls and as a pre-wall or corner module.
Completely pre-assembled unit, consisting of:
- TECE urinal flush valve housing U 1 with inlet flow control and bare-wall protection system
- Connection Rp 1/2"
- Two adjustable supports for floor projections of 0-200 mm
- Two M 8 retaining bolts
- Continuously adjustable fixing rails
- Continuously height-adjustable drain connection
- Connection bend DN 50 including protective plugs
- Mounting material for urinal
- Inlet fitting 1/2"
