TECEplanus urinal electronics, 12 V mains
Fine assembly set for contactless infrared flush system.
Suitable for TECE urinal flush valve housing U 1.
Usable from 0.5 bar minimum flow pressure.
Flush time, water-saving stop function, cleaning mode, pre-flush and hygiene flush can be set.

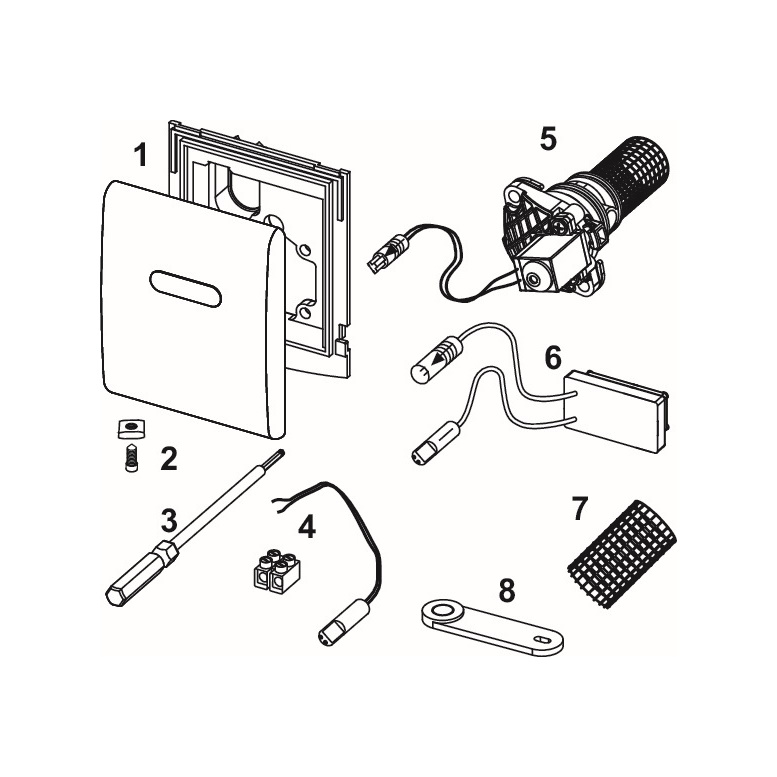

Consisting of:
Solenoid valve with large dirt filter

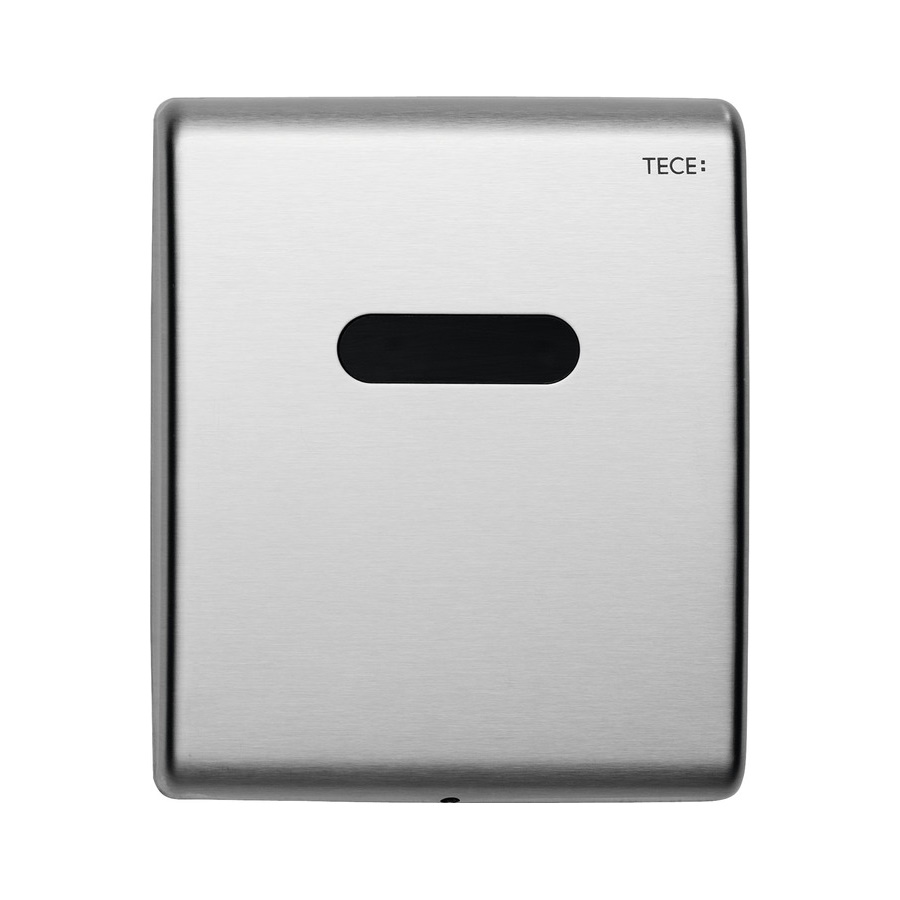

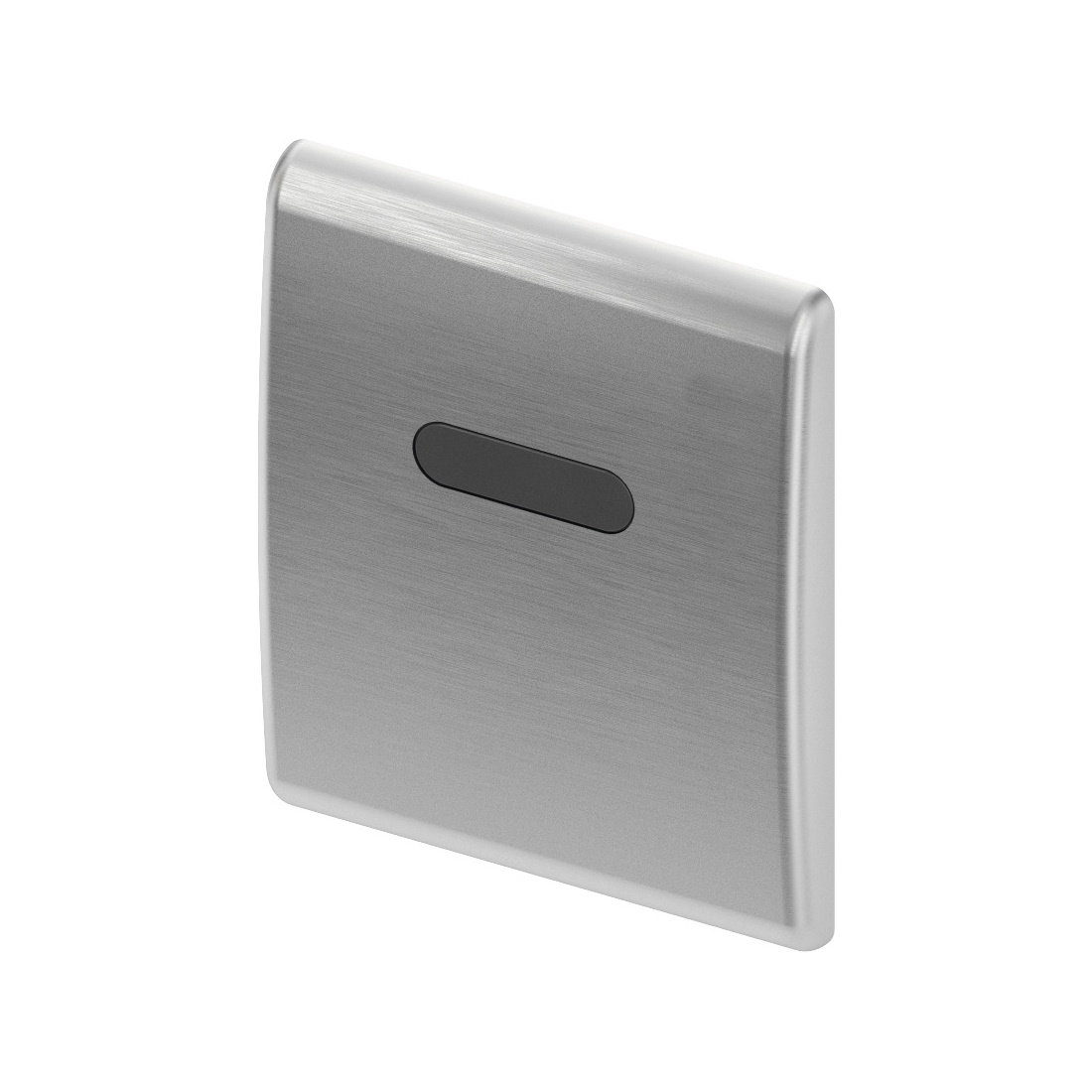

Screw-down metal cover with sensor field
Mounting material
Programming key

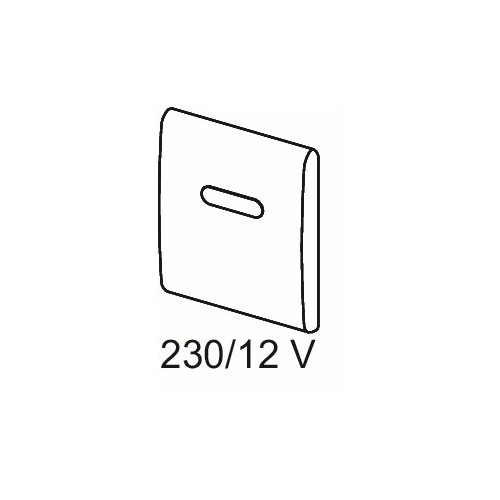

Mains operated via external 230/12 V transformer (not contained in scope of delivery)

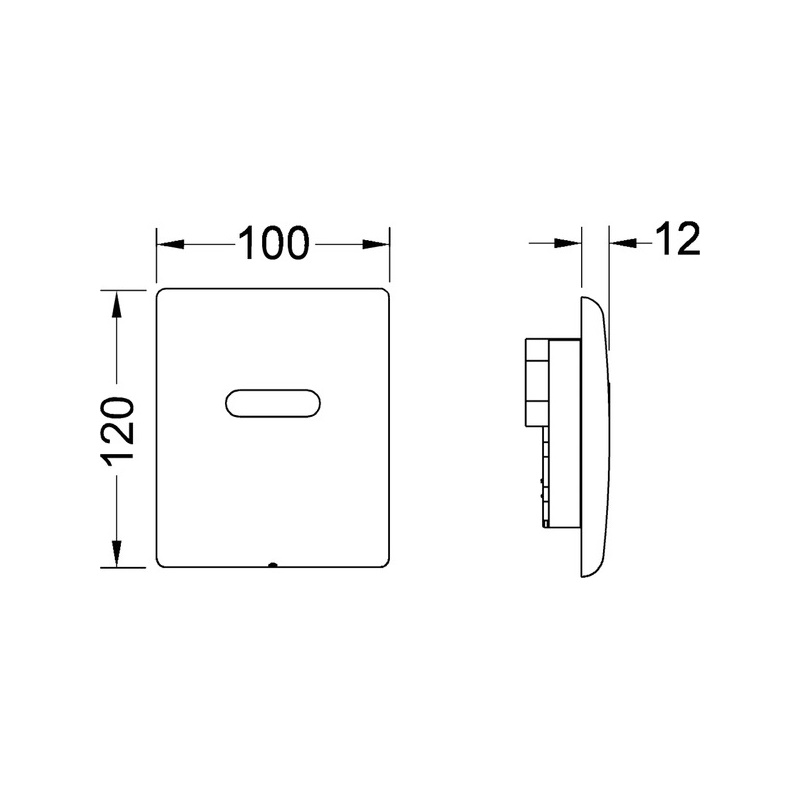

Dimensions (W x H x D): 100 x 120 x 12 mm
