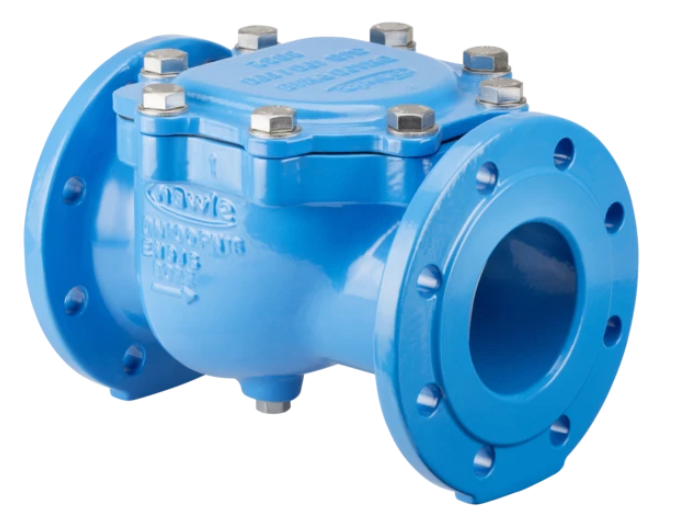

Einstreymisloki Hawle DN200 PN10
Vulcanized Disk
Þyngd: 82 kg
Eiginleikar
Diameter range DN 50–DN 200
Pressure rating PN 10
- Check valves protect the pipelines and plants against flow medium back-streaming
- The flap opens automatically in the flow according to the arrow on the valve housing
- Body length according to EN 558-1 GR 48
- Flange measured according to EN 1092-2, drilled according to EN 1092-2 | PN 10 standard; EN 1092-2 | PN 16 from DN 200 please specify upon ordering – additional standards upon request
- Low weight, improved cleaning, corrosion-free flap bearing, optimized flow characteristics, easy maintenance
- min. opening pressure 0.03 bar
- min. closing pressure 0.5 bar (tightness)
