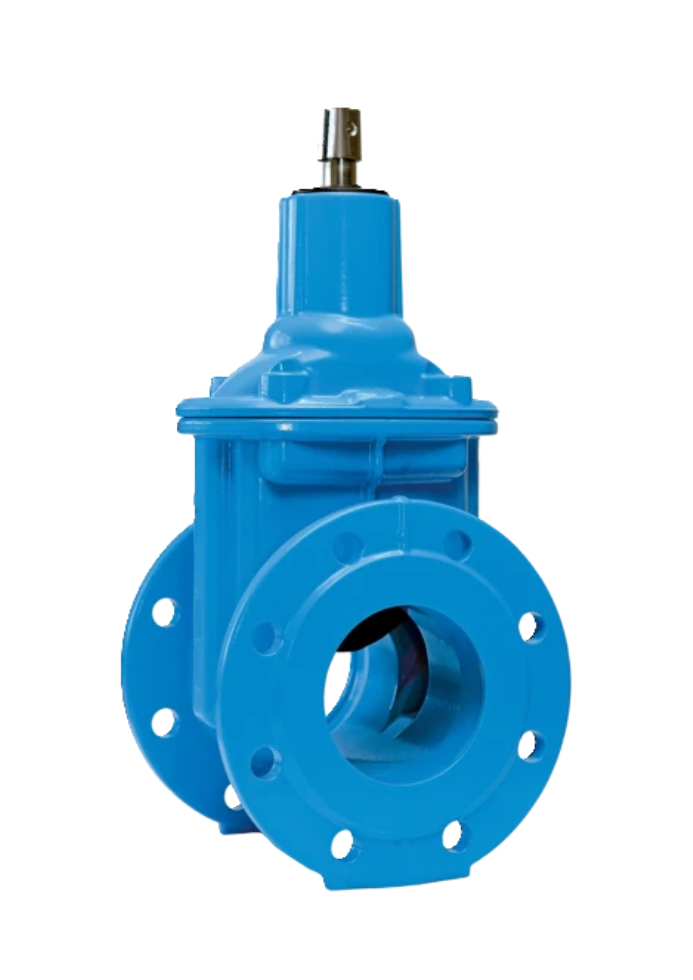

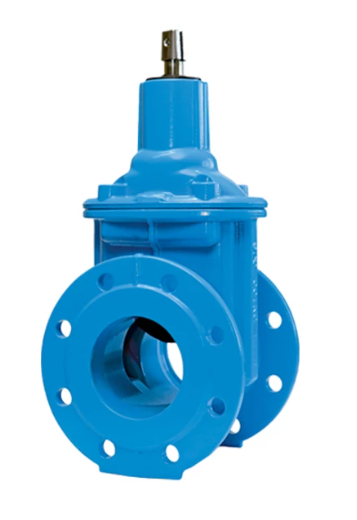

Loki E1+ Hawle Flangs DN125 PN16
EN 558-1 GR 14
Þyngd: 31,2 kg
Eiginleikar
- Resilient seated gate valve with smooth, straight bore
- Flanges sized in accordance with EN 1092-2, drilled according
to EN 1092-2 | PN 10 standard; EN 1092-2 | PN 16 for DN 200 Please specify on order - other standards on request - Suitable for cleaning with a cleaning pig
- Short face-to-face length (EN 558 GR 14)
- Long face-to-face length (EN 558 GR 15)
- DUPLEX stainless steel spindle
Standard version: without handwheel and extension spindle
(only suitable for manual actuation)
Special versions: on request
