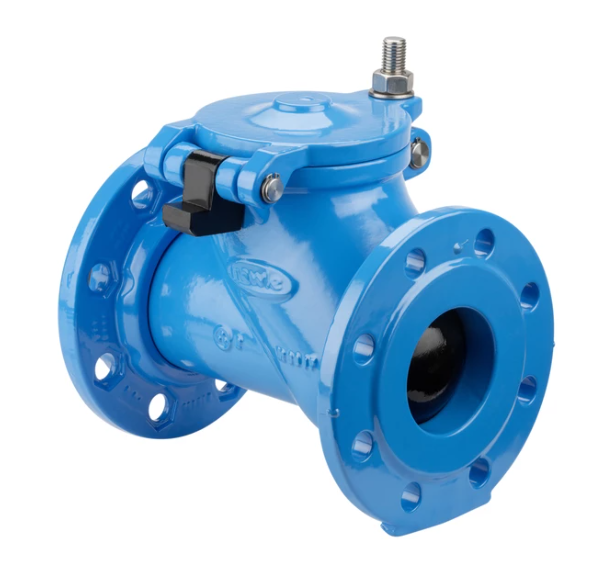

Einstefnuloki Hawle Flangs m. Kúlu DN200 PN10
Þyngd: 87,8 kg
Eiginleikar
Diameter range DN 50–DN 300
Pressure rating PN 10 I PN 16
- Prevents return flow through ball check principle
- Simple assembly and disassembly through single-sided loose flange with integrated flange gasket
- Drain opening in body
- Hinged lid with joint function for easy maintenance
- 100% corrosion protection
- Free passage
- Patent pending

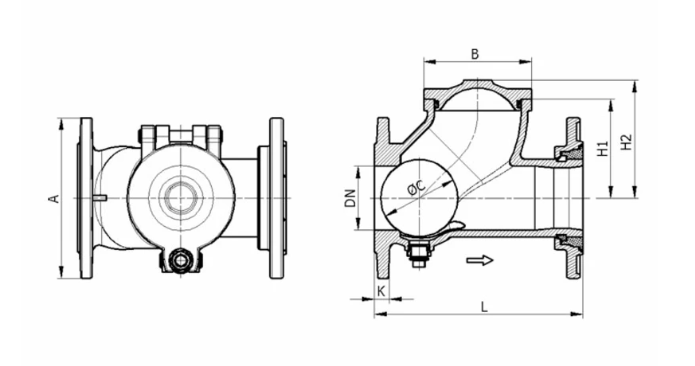

- Face-to-face length according to EN 558-1 GR 48
- Flange sized in accordance with EN 1092-2, drilled according to EN 1092-2 PN 10 standard; EN 1092-2 | PN 16 DN 200 - 300 please specify on order -other standards on request
